Nimbus Series

DESCRIPTION

Desciption of Nimbus Series

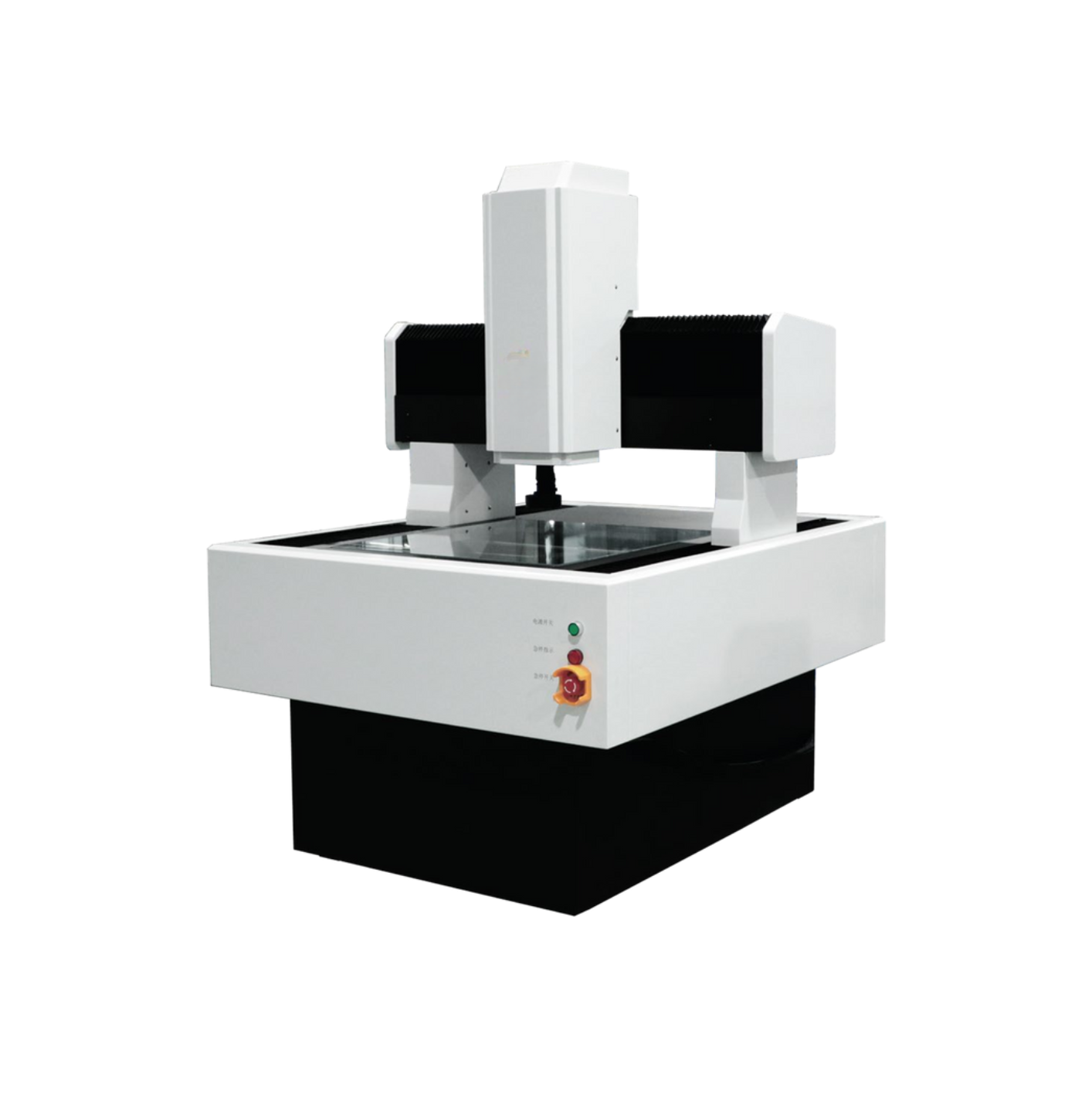

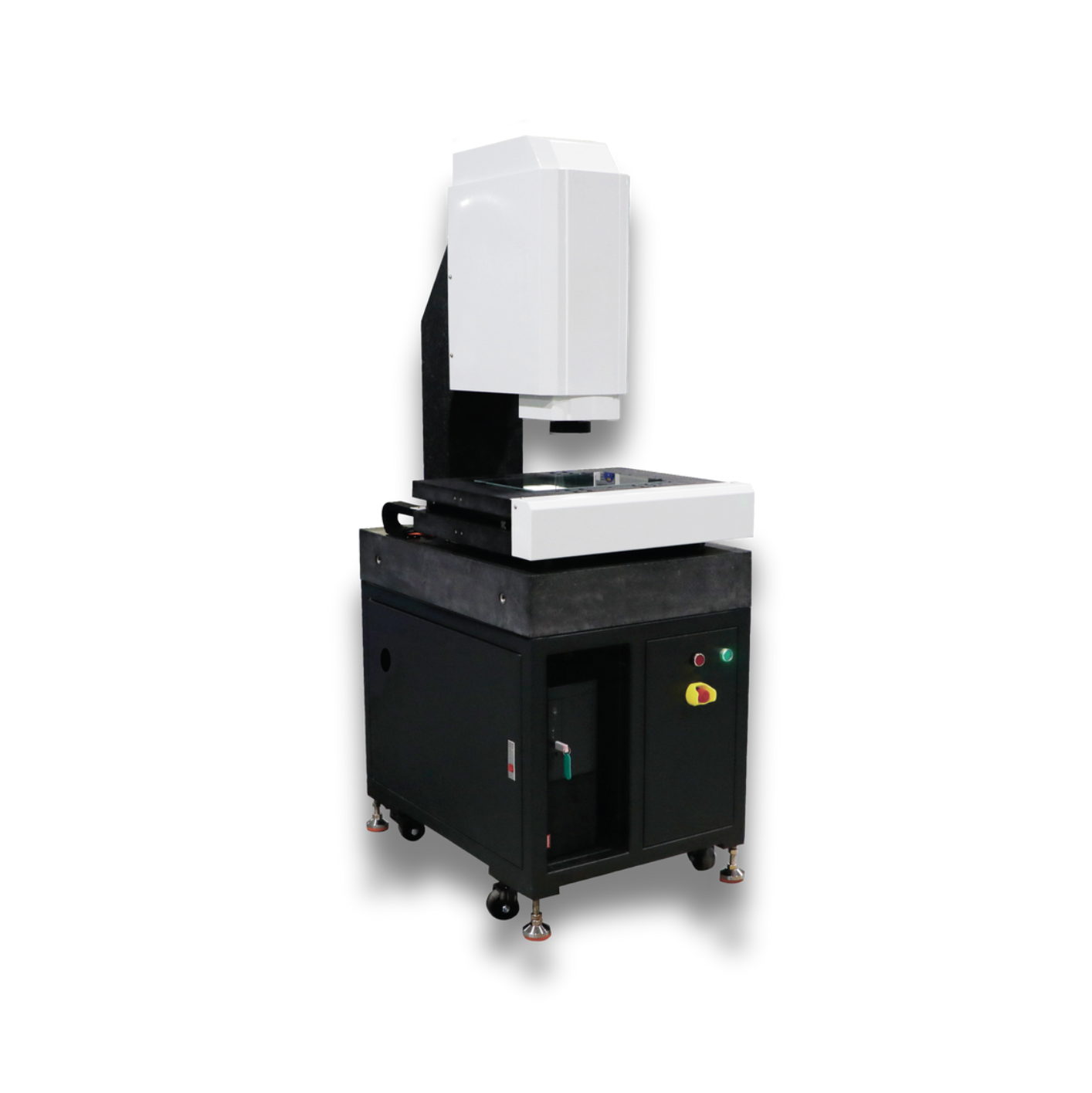

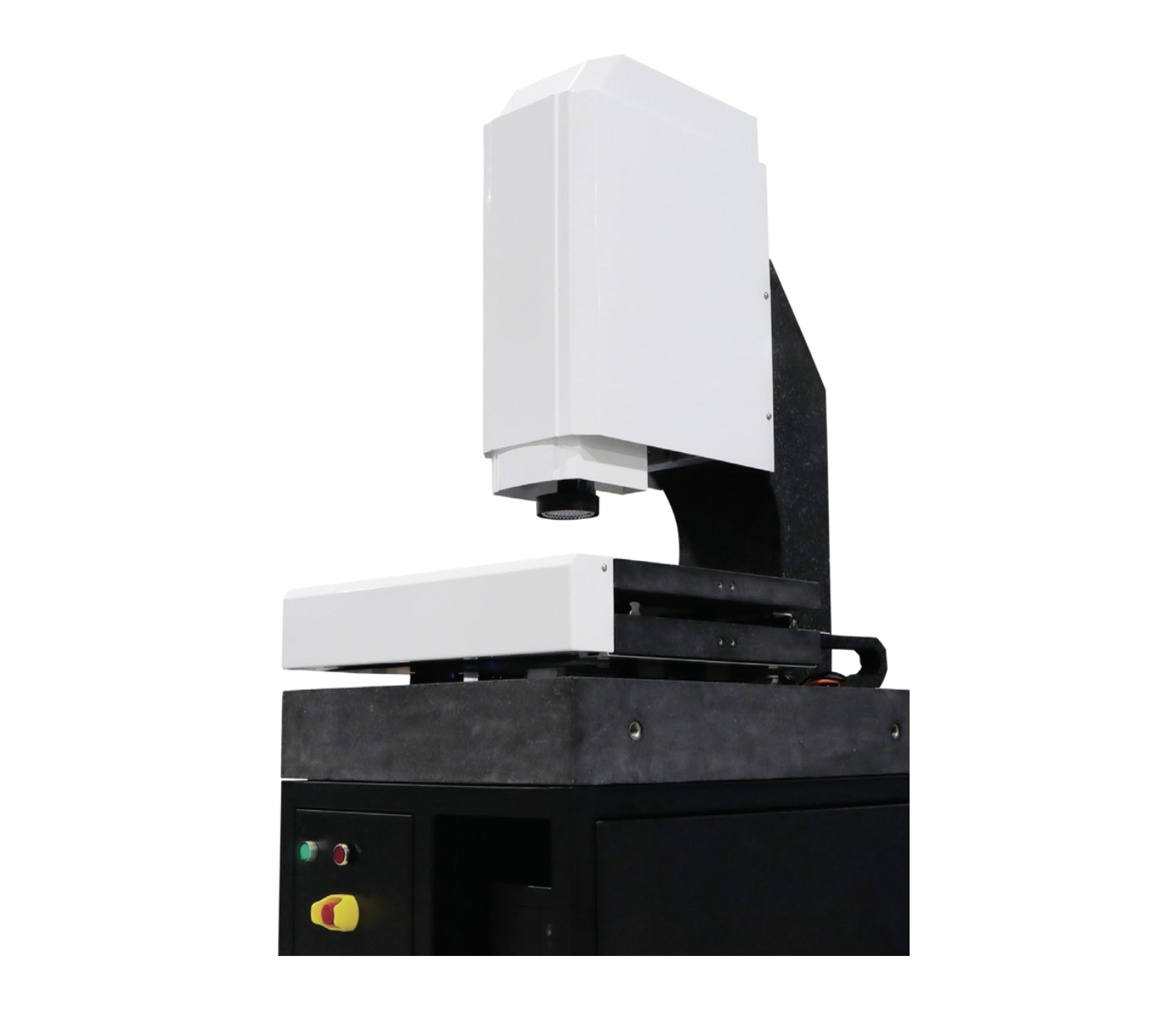

The NIMBUS Series is a fully automated video measurement system designed for high-precision inspection of complex mechanical and electronic components. Equipped with a motorized high-resolution zoom lens, GigE color camera, and programmable multi-segment LED illumination, it ensures accurate, repeatable measurements across varying surfaces and materials. Its granite base and pillar minimize vibration, enhancing stability and measurement reliability. Integrated with Inspect software, the system offers advanced geometric measurement, CAD export, and automated tolerance analysis, making it ideal for precision manufacturing and quality control environments.

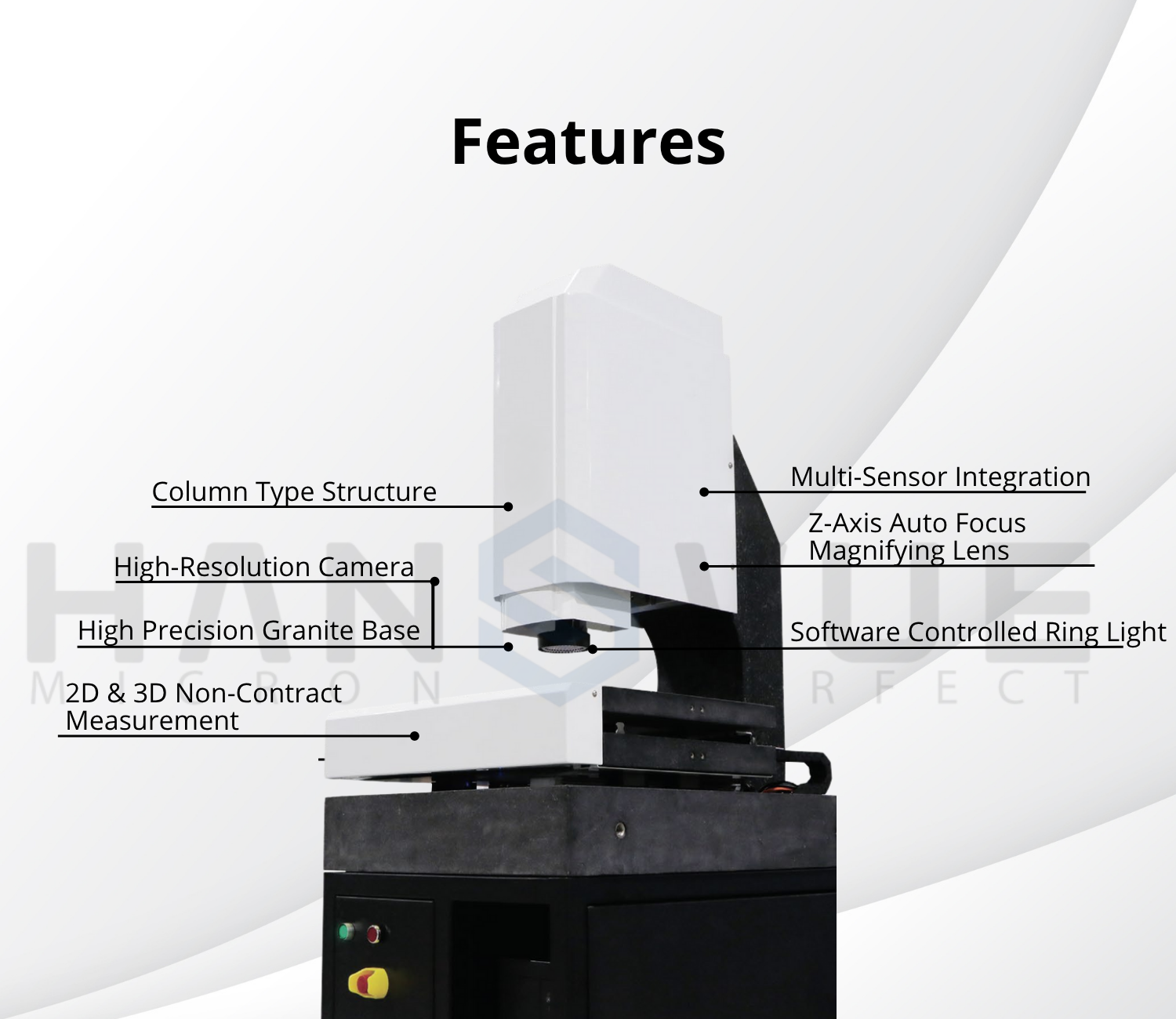

Features

1. High Precision Granite Base
2. Column Type Structure
3. Z-Axis Auto Focus Magnifying Lens
4. High-Resolution Camera
5. Multi-Sensor Integration
6. Software Controlled Ring Light
7. 2D & 3D Non-Contract Measurement

SPECIFICATION

Specification of Nimbus Series

Model	NIMBUS 650	NIMBUS 850	NIMBUS 1000	NIMBUS 1200	NIMBUS 1600	NIMBUS 2000	NIMBUS 2600
Measurement Range	550×650×200	650×850×200	800×1000×200	1000×1200×200	1200×1600×200	1400×2000×200	1600×2600×200
X/Y Linear Accuracy	(3.0+L/200)μm		(5.0+L/150)μm
Z Accuracy	(5.0+L/150)μm
Image System	1/2″ GIGE Color Camera, 1.3MP Magnification: 40X–250X Working Distance: 90mm
Illumination	White LED, ring light & transmission light
Net Weight	760KG	960KG	1200KG	1500KG	3500KG	5000KG	7000KG

SOFTWARE

Software of Nimbus Series

POWERFUL SOFTWARE FOR ACCURATE MEASUREMENT

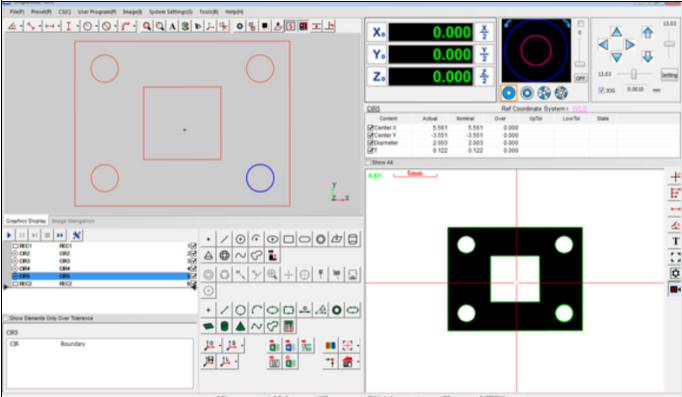

By combining the expertise of seasoned professionals with the latest technological developments, this software offers unparalleled precision and accuracy in measurement tasks. With a focus in simplicity and ease of use, inspect 3D provides users with a seamless experience, allowing them to achieve precise measurements efficiently. Its robust design ensures stability and reliability, even in the most demanding environments, while also being easy to maintain for continued optimal performance.

Software

-Concise And User-Friendly Interface
-Powerful Geometric Measurement Functions
-Convenient And Quick Measurement Of Comple Shapesand Large Batch Workpieces
-Quick Navigation Function For Locating Local Features
-Export To Cad In Dxf/Dwg
-Automatic Calculation Of Geometric Tolerances
-Diverse Data Reporting And Graphical Data Export Functions
