DESCRIPTION
Elite Series – Column & Bridge Type Auto Vision Measuring Machine for Fast, Accurate 2D Inspection
The Elite Series is HansVue’s flagship automatic vision measuring system built for rapid, accurate, and high-throughput 2D measurements. Featuring cutting-edge telecentric lens technology, sub-pixel image edge processing (up to 20:1), and ultra-low distortion optics, it delivers true-to-form, reliable measurement results—crucial for modern manufacturing and quality control.
With an ultra-wide field of view and support for high-resolution digital cameras (12MP to 43MP), the Elite Series enables fast, one-click batch measurements of up to 5,000 dimensions at once. The system can automatically identify and measure workpieces placed arbitrarily on the stage—no manual alignment needed.

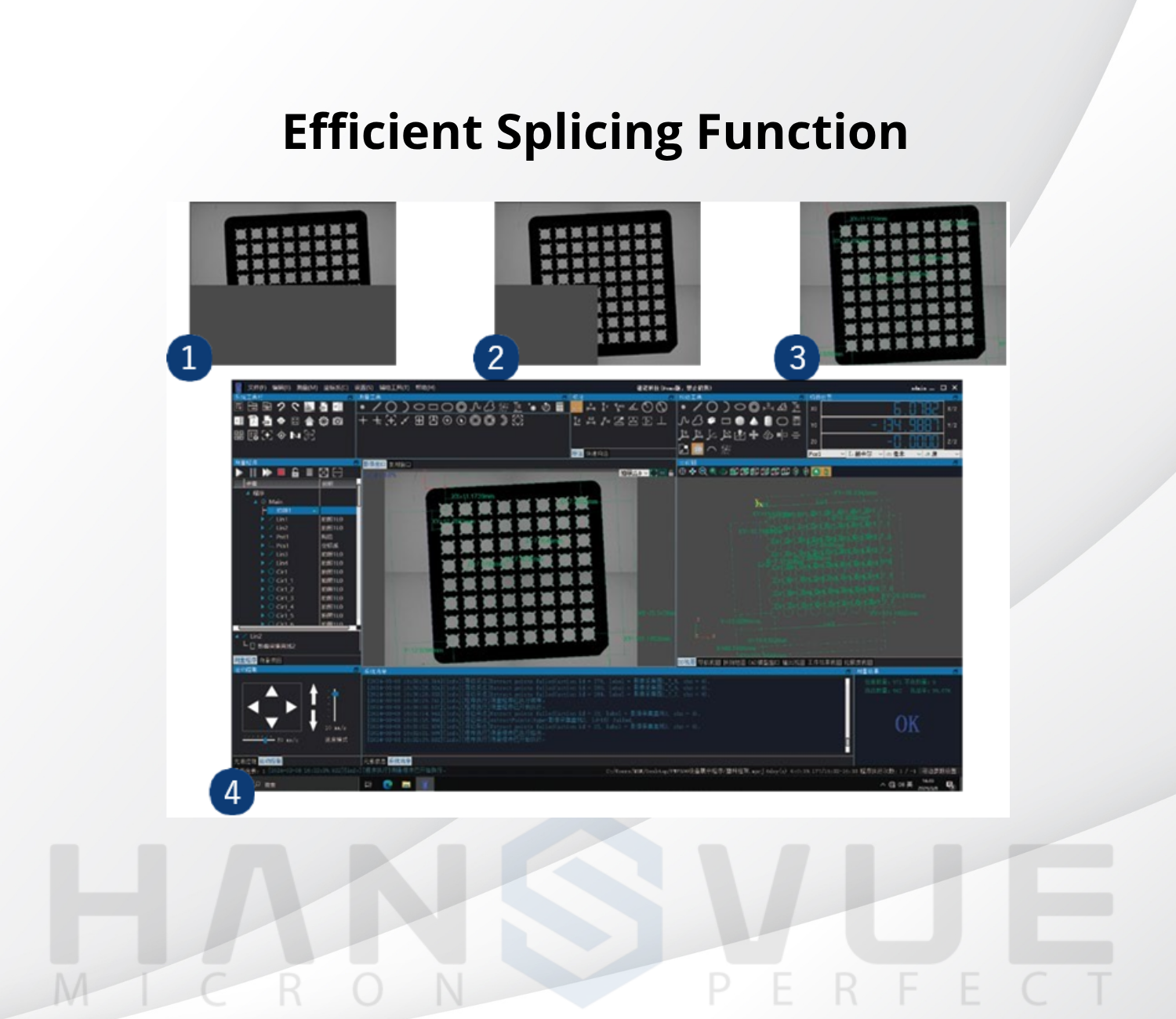

Equipped with intelligent programmable lighting, splice stage for extended measurement areas, and proprietary image stitching technology (with <0.003mm stitching error), the Elite Series ensures precise, efficient, and user-friendly operation. Its automatic burr removal and anomaly filtering functions help maintain measurement consistency even in high-volume scenarios.

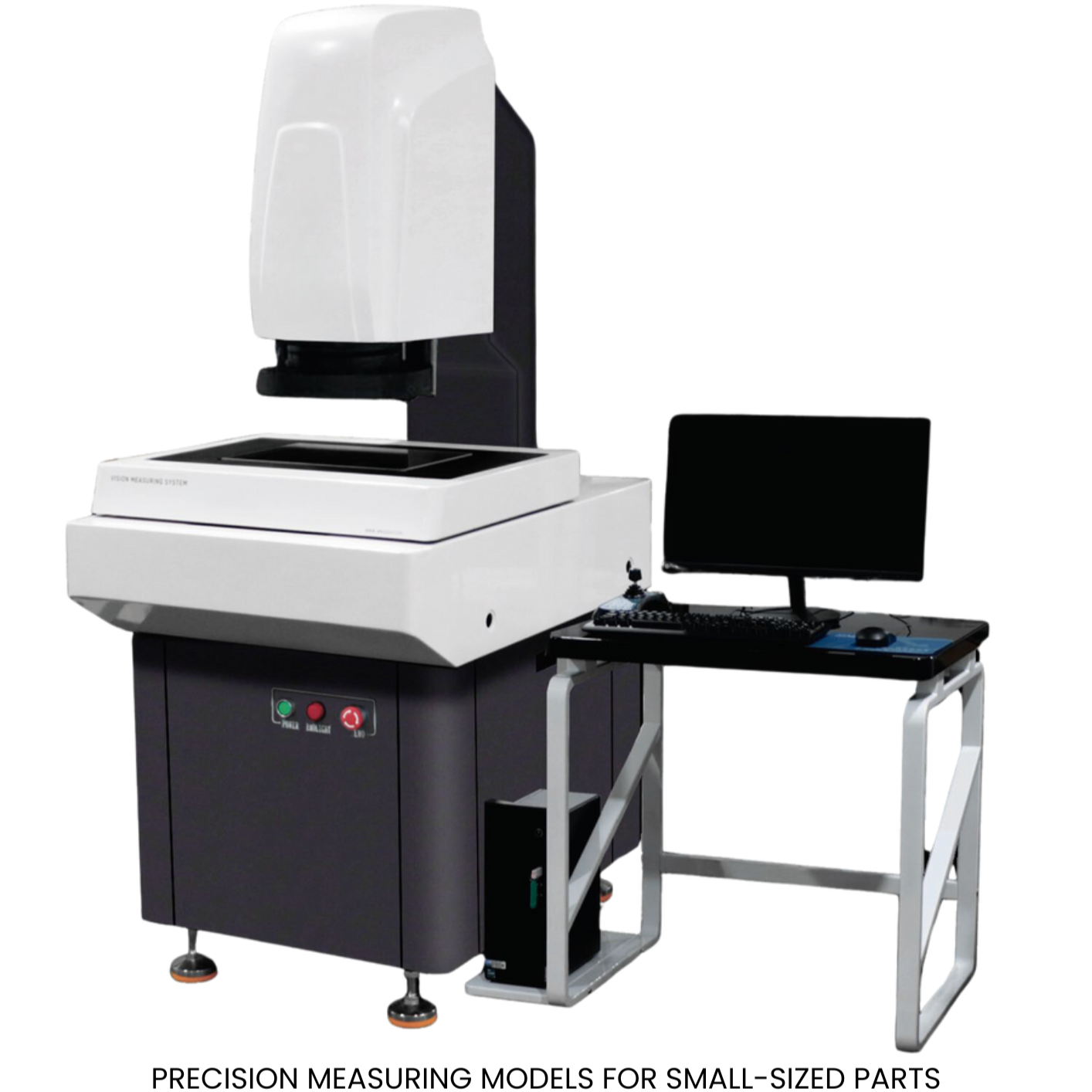

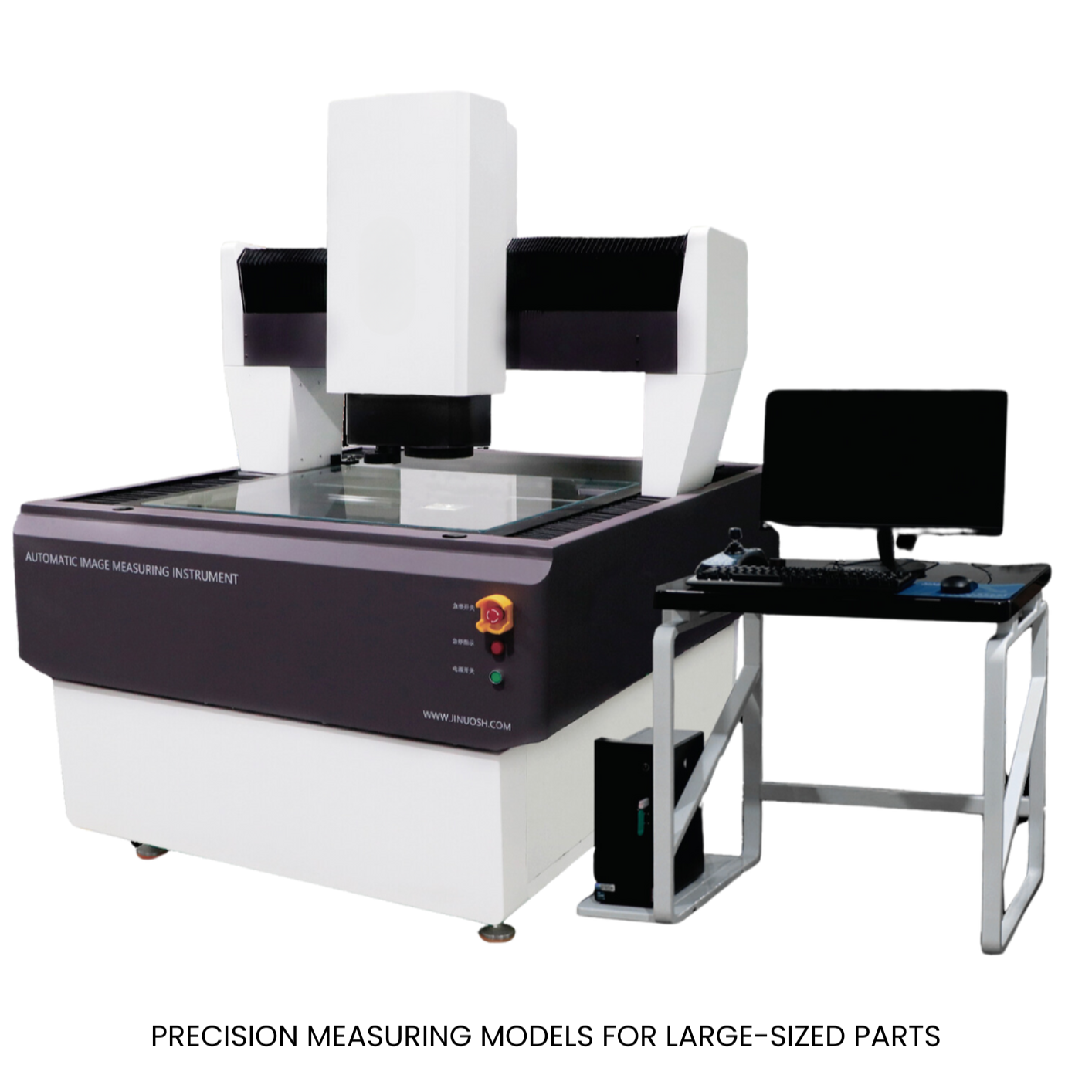

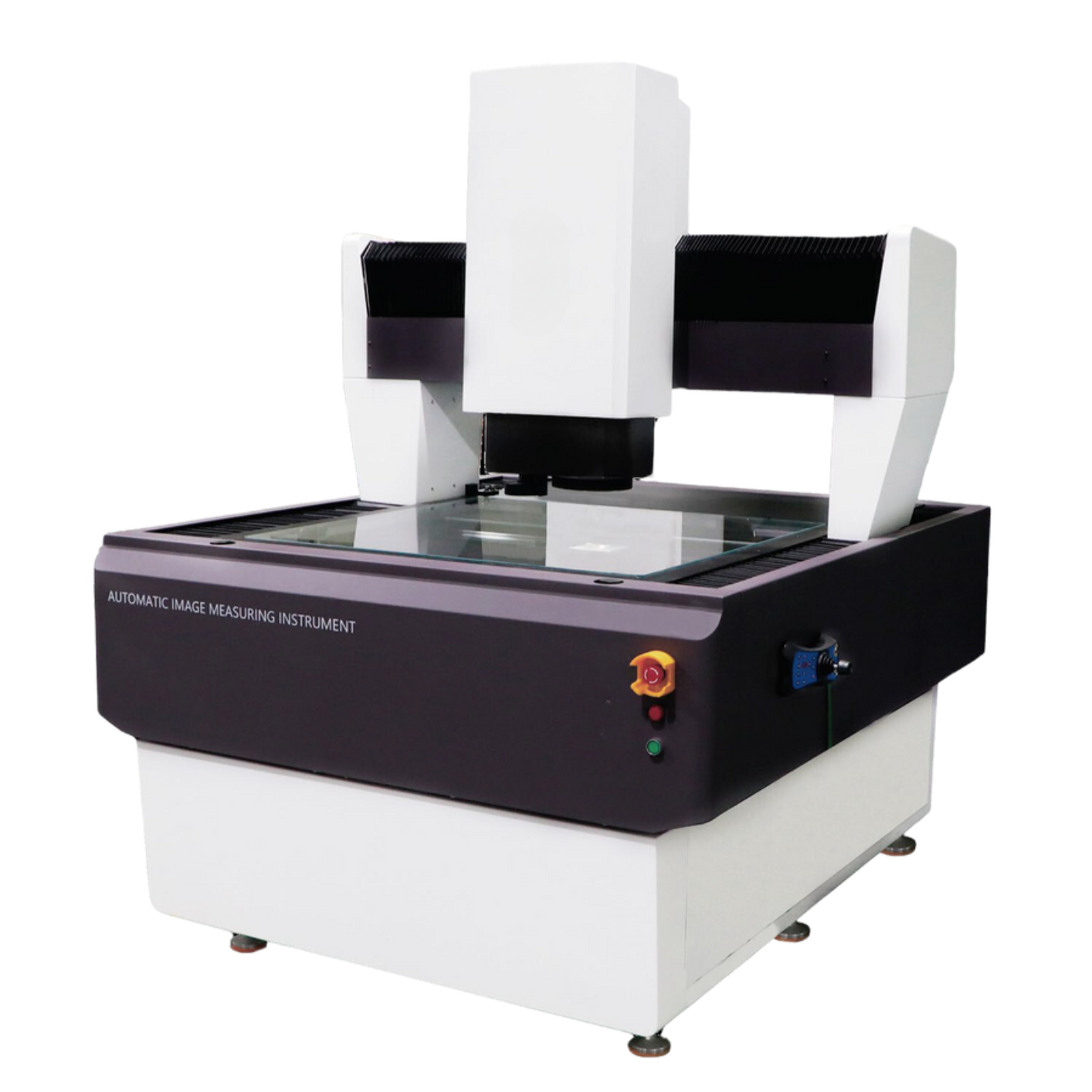

Available in column-type models for small parts and bridge-type models for larger components, the Elite Series is ideal for industries such as CNC machining, mold & die, electronics, die casting, gears, and automotive modules. Whether measuring flat panels or complex geometries, the Elite Series brings next-level efficiency and accuracy to your inspection workflow.
Features
1. Fast Measurement.
2. Suitable for large size sample.
3. Break the conventions of size measuremnet. One machine can supply all solution.
4. Large aperture high depth of field, full field of vision imaging clear, ultra-low distortion.
5. High resolution digital camera. The instrument uses a high resolution digital camera ranging from 12 million to 43 million pixels.
6. The software adopts advanced 20:1 subpixel image edge processing.
7. Software process can automatically remove burrs and outliers, and reduce the impact on the feature location to a minimum.
8. Automatic identification of the workpiece without positioning.
9. The measurement range can measure more than 5,000 dimensions at one time, and the measurement time of 100 dimensions is less than 1 second, which greatly reduces the measurement time and improves the measurement efficiency.
10. Arbitrary placement of multiple workpieces, automatic identification,
batch measurement.
